Make every moment a proud scoreboard moment.
For your Volleyball Court indoor or outdoor we have a variety of options!
Choose from a standard sports scoreboard with scores and a game clock or a volleyball scoreboard LED screen with the ability to display scores, venue information and advertising! Our electronic Volleyball scoreboard options are reliable and durable due to cutting edge materials and software and use the best LED technology. Not only will your scoreboard last the test of time but it will compliment your court and support your local team as well.
Volleyball Scoreboard Range
Model: SCVO-P-SO
Volleyball Scoreboard with Home and Visitor scores to 199 with possession indicators.
- Team scores to 199.
- Possession Indicators.
- Vinyl sign writing LIGHT, DARK, SCORE (optional modifications).
- Premium multi-colour LED technology.

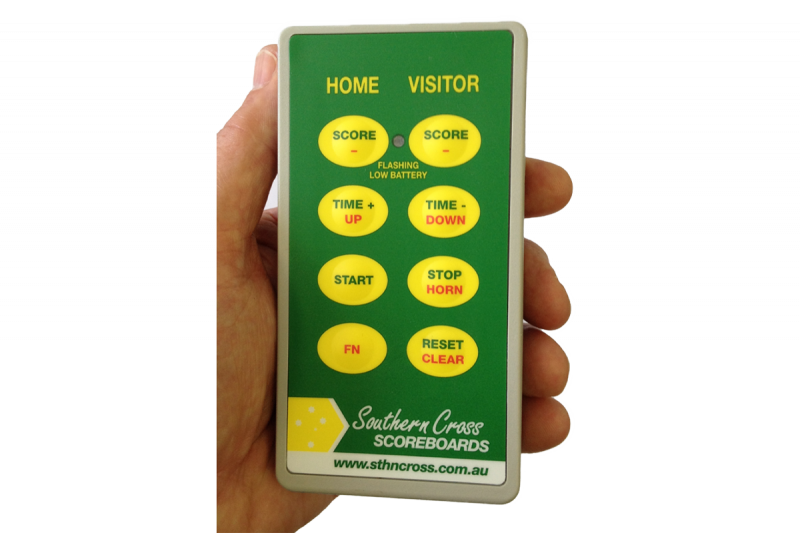

- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v internal or external siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCVO-100-P-SO | 100 mm | 1100 x 400 | 50 m | TBC |
| SCVO-150-P-SO | 150 mm | 1600 x 400 | 75 m | TBC |
| SCVO-265-P-SO | 265 mm | 2200 x 650 | 100 m | TBC |
| SCVO-300-P-SO | 300 mm | 2400 x 700 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal or External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- AFL
- Football
- Hockey
- Netball
- Rugby Union
- Rugby League
- Volleyball
- WaterPolo

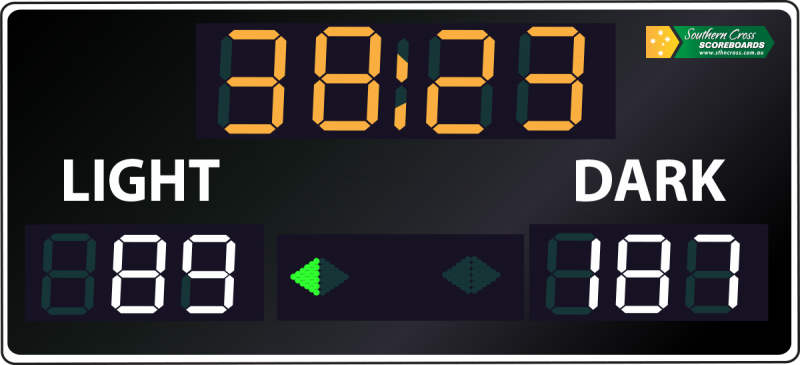

Model: SCVO-P-A
Volleyball Scoreboard with Home and Visitor scores to 199 with possession indicators and game clock, layout A.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 199.
- Possession Indicators.
- Vinyl sign writing LIGHT, DARK (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion internal or external 12v siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCVO-100-P-A | 100 mm | 1400 x 600 | 50 m | TBC |
| SCVO-150-P-A | 150 mm | 1600 x 600 | 75 m | TBC |
| SCVO-265-P-A | 265 mm | 2400 x 950 | 100 m | TBC |
| SCVO-300-P-A | 300 mm | 2400 x 950 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal or External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- Basketball
- Volleyball
- Futsal
- Indoor Sports

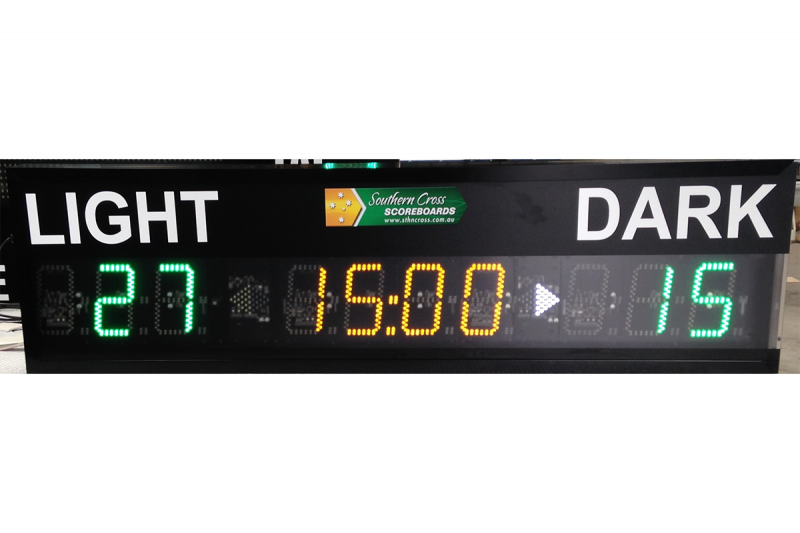

Model: SCVO-P-C
Volleyball Scoreboard with Home and Visitor scores to 199 with possession indicators and game clock, layout C.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 199.
- Possession Indicators.
- Vinyl sign writing LIGHT, DARK (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion internal or external 12v siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCVO-100-P-C | 100 mm | 1600 x 450 | 50 m | 20 kg |
| SCVO-150-P-C | 150 mm | 1600 x 450 | 75 m | 20 kg |
| SCVO-265-P-C | 265 mm | 2400 x 600 | 100 m | TBC |
| SCVO-300-P-C | 300 mm | 3500 x 650 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal or External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- Basketball
- Volleyball
- Futsal
- Indoor Sports

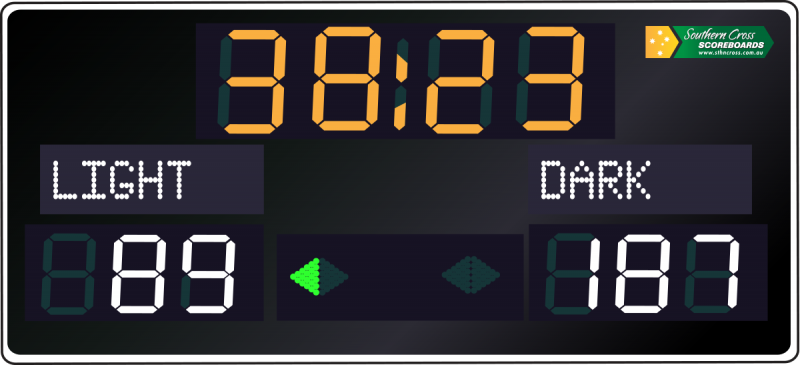

Model: SCVO-P-A-N
Volleyball Scoreboard with Home and Visitor scores to 199, possession indicators and game clock with LED team names, layout A.
- A 4 digit resettable Game Clock with minute and second adjustments.
- Team scores to 199.
- Possession Indicators.
- Electronic LED team names (Team names stored to scoreboard memory)
- Vinyl sign writing SCORE (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion internal or external 12v siren.
| MODEL | Scores Height | Team name Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCVO-100-P-A-N150 | 100 mm | 150 mm | 2200 x 1000 | 50 m | TBC |
| SCVO-150-P-A-N150 | 150 mm | 150 mm | 2200 x 1000 | 75 m | TBC |
| SCVO-265-P-A-N150 | 265 mm | 150 mm | 2400 x 1200 | 100 m | TBC |
| SCVO-300-P-A-N150 | 300 mm | 150 mm | 2400 x 1200 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- Internal or External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
This scoreboard can be programmed to be multi-functional with the below sports:
- Basketball
- Volleyball
- Futsal
- Indoor Sports
Model: SCMAT-P10
Volleyball LED Screen Scoreboard.
- Southern Cross Volleyball scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour DIP LED technology.
- Brightness to 7500nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s.
- Optional inclusion 12v external siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P10-2.9w-0.9h | 2880 | 960 | 288 x 96 | 40m | No | 120kg |
| SCMAT-P10-2.9w-1.9h | 2880 | 1920 | 288 x 192 | 70m | No | 253kg |
| SCMAT-P10-2.9w-3.8h | 2880 | 3840 | 288 x 384 | 70m | No | 507kg |
| SCMAT-P10-3.8w-1.9h | 3840 | 1920 | 384 x 192 | 80m | No | 332kg |
| SCMAT-P10-3.8w-2.9h | 3840 | 2880 | 384 x 288 | 80m | Yes | 507kg |
| SCMAT-P10-3.8w-3.8h | 3840 | 3840 | 384 x 384 | 80m | No | 664kg |
| SCMAT-P10-3.8w-4.8h | 3840 | 4800 | 384 x 480 | 80m | No | 839kg |
| SCMAT-P10-4.8w-1.9h | 4800 | 1920 | 480 x 192 | 80m | No | 420kg |
| SCMAT-P10-4.8w-2.9h | 4800 | 2880 | 480 x 288 | 80m | Yes | 640kg |
| SCMAT-P10-4.8w-3.8h | 4800 | 3840 | 480 x 384 | 100m | Yes | 839kg |
| SCMAT-P10-5.8w-1.9h | 5760 | 1920 | 576 x 192 | 100m | No | 507kg |
| SCMAT-P10-5.8w-2.9h | 5760 | 2880 | 576 x 288 | 100m | Yes | 774kg |
| SCMAT-P10-5.8w-3.8h | 5760 | 3840 | 576 x 384 | 130m | Yes | 1013kg |
| SCMAT-P10-6.7w-2.9h | 6720 | 2880 | 672 x 288 | 130m | Yes | 894kg |
| SCMAT-P10-6.7w-3.8h | 6720 | 3840 | 672 x 384 | 130m | Yes | 1171kg |
| SCMAT-P10-6.7w-4.8h | 6720 | 4800 | 672 x 480 | 150m | Yes | 1479kg |
| SCMAT-P10-7.7w-2.9h | 7680 | 2880 | 768 x 288 | 150m | Yes | 1027kg |
| SCMAT-P10-7.7w-3.8h | 7680 | 3840 | 768 x 384 | 150m | Yes | 1346kg |
| SCMAT-P10-7.7w-4.8h | 7680 | 4800 | 768 x 480 | 150m | Yes | 1700kg |
| SCMAT-P10-7.7w-5.8h | 7680 | 5760 | 768 x 576 | 150m | Yes | 2054kg |
| SCMAT-P10-8.6w-3.8h | 8640 | 3840 | 864 x 384 | 150m | Yes | 1503kg |
| SCMAT-P10-8.6w-4.8h | 8640 | 4800 | 864 x 480 | 180m | Yes | 1899kg |
| SCMAT-P10-8.6w-5.8h | 8640 | 5760 | 864 x 576 | 180m | Yes | 2294kg |
| SCMAT-P10-9.6w-4.8h | 9600 | 4800 | 960 x 480 | 180m | Yes | 2120kg |
| SCMAT-P10-9.6w-5.8h | 9600 | 5760 | 960 x 576 | 200m | Yes | 2561kg |
| SCMAT-P10-9.6w-6.7h | 9600 | 6720 | 960 x 672 | 200m | Yes | 2959kg |
| SCMAT-P10-9.6w-7.7h | 9600 | 7680 | 960 x 768 | 200m | Yes | 3400kg |
| SCMAT-P10-10.6w-5.8h | 10560 | 5760 | 1056 x 576 | 200m | Yes | 2828kg |
| SCMAT-P10-10.6w-6.7h | 10560 | 6720 | 1056 x 672 | 200m | Yes | 3267kg |
| SCMAT-P10-10.6w-7.7h | 10560 | 7680 | 1056 x 768 | 220m | Yes | 3755kg |
| SCMAT-P10-11.5w-6.7h | 11520 | 6720 | 1152 x 672 | 220m | Yes | 3544kg |
| SCMAT-P10-11.5w-7.7h | 11520 | 7680 | 1152 x 768 | 220m | Yes | 4073kg |
| SCMAT-P10-11.5w-8.6h | 11520 | 8640 | 1152 x 864 | 220m | Yes | 4549kg |
| SCMAT-P10-12.5w-7.7h | 12480 | 7680 | 1248 x 768 | 220m | Yes | 4428kg |
| SCMAT-P10-12.5w-8.6h | 12480 | 8640 | 1248 x 864 | 220m | Yes | 4945kg |
| SCMAT-P10-13.4w-7.7h | 13440 | 7680 | 1344 x 768 | 220m | Yes | 4746kg |
| SCMAT-P10-13.4w-8.6h | 13440 | 8640 | 1344 x 864 | 220m | Yes | 5301kg |
- Multi-sport software.
- Support structure.
- Installation.
- External 12v siren.
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
Model: SCMAT-P7
Volleyball LED Screen Scoreboard.
- Southern Cross Volleyball scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour SMD LED technology.
- Brightness to 6000nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s.
- Optional inclusion 12v external siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P7-xw-1h | x | 1000 | X x 143 | 40m | No | NA |
| SCMAT-P7-2w-1h | 2000 | 1000 | 286 x 143 | 40m | No | 60kg |
| SCMAT-P7-2w-1.5h | 2000 | 1500 | 286 x 214 | 70m | No | 90kg |
| SCMAT-P7-3w-1h | 3000 | 1000 | 429 x 143 | 70m | No | 90kg |
| SCMAT-P7-3w-1.5h | 3000 | 1500 | 429 x 214 | 80m | Yes | 135kg |
| SCMAT-P7-3w-2h | 3000 | 2000 | 429 x 286 | 80m | Yes | 180kg |
| SCMAT-P7-3.5w-1.5h | 3500 | 1500 | 500 x 214 | 80m | Yes | 158kg |
| SCMAT-P7-3.5w-2h | 3500 | 2000 | 500 x 286 | 80m | Yes | 210kg |
| SCMAT-P7-4w-1.5h | 4000 | 1500 | 571 x 214 | 80m | Yes | 180kg |
| SCMAT-P7-4w-2h | 4000 | 2000 | 571 x 286 | 80m | Yes | 240kg |
| SCMAT-P7-4w-2.5h | 4000 | 2500 | 571 x 357 | 100m | 1Yes | 300kg |
| SCMAT-P7-4.5w-2h | 4500 | 2000 | 643 x 286 | 100m | Yes | 270kg |
| SCMAT-P7-4.5w-2.5h | 4500 | 2500 | 643 x 357 | 100m | Yes | 338kg |
| SCMAT-P7-4.5w-3h | 4500 | 3000 | 643 x 429 | 130m | Yes | 405kg |
| SCMAT-P7-5w-2.5h | 5000 | 2500 | 714 x 357 | 130m | Yes | 375kg |
| SCMAT-P7-5w-3h | 5000 | 3000 | 714 x 429 | 130m | Yes | 450kg |
| SCMAT-P7-6w-3h | 6000 | 3000 | 857 x 429 | 150m | Yes | 540kg |
| SCMAT-P7-6w-4h | 6000 | 4000 | 857 x 571 | 150m | Yes | 720kg |
| SCMAT-P7-6w-5h | 6000 | 5000 | 857 x 714 | 150m | Yes | 900kg |
| SCMAT-P7-7w-3h | 7000 | 3000 | 1000 x 429 | 150m | Yes | 630kg |
| SCMAT-P7-7w-4h | 7000 | 4000 | 1000 x 571 | 150m | Yes | 840kg |
| SCMAT-P7-7w-5h | 7000 | 5000 | 1000 x 714 | 150m | Yes | 1050kg |
| SCMAT-P7-8w-4h | 8000 | 4000 | 1143 x 571 | 180m | Yes | 960kg |
| SCMAT-P7-8w-5h | 8000 | 5000 | 1143 x 714 | 180m | Yes | 1200kg |
| SCMAT-P7-8w-6h | 8000 | 6000 | 1143 x 857 | 180m | Yes | 1440kg |
| SCMAT-P7-9w-5h | 9000 | 5000 | 1286 x 714 | 180m | Yes | 1350kg |
| SCMAT-P7-9w-6h | 9000 | 6000 | 1286 x 857 | 180m | Yes | 1620kg |
| SCMAT-P7-10w-5h | 10000 | 5000 | 1429 x 714 | 180m | Yes | 1500kg |
| SCMAT-P7-10w-6h | 10000 | 6000 | 1429 x 857 | 180m | Yes | 1800kg |
| SCMAT-P7-10w-7h | 10000 | 7000 | 1429 x 1000 | 180m | Yes | 2100kg |
| SCMAT-P7-11w-5h | 11000 | 5000 | 1571 x 714 | 180m | Yes | 1650kg |
| SCMAT-P7-11w-6h | 11000 | 6000 | 1571 x 857 | 200m | Yes | 1980kg |
| SCMAT-P7-11w-7h | 11000 | 7000 | 1571 x 1000 | 200m | Yes | 2310kg |
| SCMAT-P7-11w-8h | 11000 | 8000 | 1571 x 1143 | 200m | Yes | 2640kg |
- Multi-sport software.
- Support structure.
- Installation.
- External 12v siren.
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
LED Technology Ahead Of The Game, So You Can Be Too!
Learn About Our LED Scoreboards
Our products are designed and manufactured to withstand extreme conditions.
Contact Us
Our professional staff are available to discuss your display requirements.
