Make every moment a proud scoreboard moment.
For your Tennis Court we have a variety of options!
Choose from a tennis scoreboard with 3 or 5 sets, or an advanced LED screen with the ability to display scores, information and advertising. Our electronic Tennis scoreboards are reliable and durable due to cutting edge materials and software and use the best LED technology. Not only will your scoreboard last the test of time but it will compliment your Tennis Court and support your local athletes as well!
Tennis Scoreboard Range
Model: SCTN-3
Tennis Scoreboard with Player A and Player B game score and 3 set scores.
- Current game score to 99.
- Set 1 game totals to 9.
- Set 2 game total to 9.
- Set 3 game total to 19.
- Current server indicator, next to game score.
- Vinyl sign writing PLAYER A, PLAYER B, GAME, 1, 2, 3 (optional modifications).
- Multiple types of scoring systems, and advanced software with ability to keep track of all game rules.
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCTN-100-3 | 100 mm | 1200 x 450 | 50 m | TBC |
| SCTN-150-3 | 150 mm | 1800 x 600 | 75 m | TBC |
| SCTN-265-3 | 265 mm | 2200 x 1000 | 100 m | TBC |
| SCTN-300-3 | 300 mm | 2400 x 1200 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

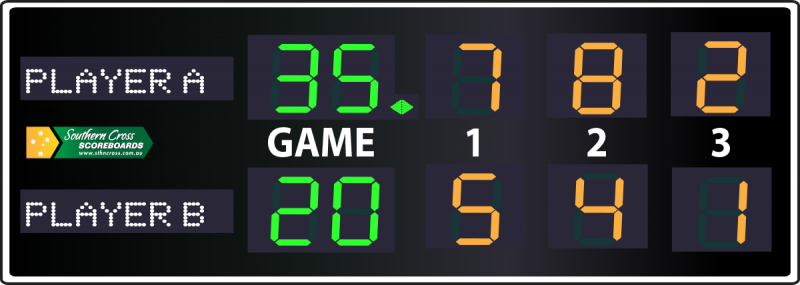

Model: SCTN-3-N
Tennis Scoreboard with Player A and Player B game score and 3 set scores with LED team names.
- Current game score to 99.
- Set 1 game totals to 9.
- Set 2 game total to 9.
- Set 3 game total to 19.
- Current server indicator, next to game score.
- Electronic LED team names (Team names stored in scoreboard memory)
- Multiple types of scoring systems, and advanced software with ability to keep track of all game rules.
- Vinyl sign writing GAME, 1, 2, 3 (optional modifications).
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Team Name Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCTN-150-3-N150 | 150 mm | 150 mm | 2400 x 450 | 75 m | TBC |
| SCTN-265-3-N150 | 265 mm | 150 mm | 2700 x 1000 | 100 m | TBC |
| SCTN-300-3-N150 | 300 mm | 150 mm | 3000 x 1200 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.

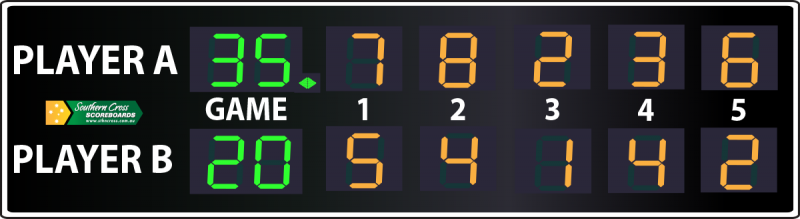

Model: SCTN-5
Tennis Scoreboard with Player A and Player B game score and 5 set scores.
- Current game score to 99.
- Set 1 game totals to 9.
- Set 2 game total to 9.
- Set 3 game total to 9.
- Set 4 game total to 9.
- Set 5 game total to 19.
- Current server indicator, next to game score.
- Vinyl sign writing PLAYER A, PLAYER B, GAME, 1, 2, 3, 4, 5 (optional modifications).
- Multiple types of scoring systems, and advanced software with ability to keep track of all game rules.
- Optional extra Electronic LED team names (Team names stored in scoreboard memory)
- Premium multi-colour LED technology.
- Control via wireless remote control.
- Weatherproof durable powder coated aluminium enclosure.
- Vandal resistant polycarbonate front window.
- Internal access via removable front window from the right hand end.
- Optional inclusion 12v external siren.
| MODEL | Scores Height | Dimensions (mm) | Max Viewing | Approx Weight |
| SCTN-100-5 | 100 mm | 1700 x 450 | 50 m | TBC |
| SCTN-150-5 | 150 mm | 2200 x 600 | 75 m | TBC |
| SCTN-265-5 | 265 mm | 3000 x 1000 | 100 m | TBC |
| SCTN-300-5 | 300 mm | 3200 x 1200 | 150 m | TBC |
- Personalise with a vinyl club or sponsorship logo.
- External 12v siren.
- Electronic LED team names (Team names stored in scoreboard memory)
- External weatherproof powerpoint.
- Trolley mounted.
- Battery powered.
- Scrolling LED message area.
- Customised layout and orientation of scoreboard.
Model: SCMAT-P7
Tennis LED Screen Scoreboard.
- Southern Cross Tennis scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour SMD LED technology.
- Brightness to 6000nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s.
- Optional inclusion 12v external siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P7-xw-1h | x | 1000 | X x 143 | 40m | No | NA |
| SCMAT-P7-2w-1h | 2000 | 1000 | 286 x 143 | 40m | No | 60kg |
| SCMAT-P7-2w-1.5h | 2000 | 1500 | 286 x 214 | 70m | No | 90kg |
| SCMAT-P7-3w-1h | 3000 | 1000 | 429 x 143 | 70m | No | 90kg |
| SCMAT-P7-3w-1.5h | 3000 | 1500 | 429 x 214 | 80m | Yes | 135kg |
| SCMAT-P7-3w-2h | 3000 | 2000 | 429 x 286 | 80m | Yes | 180kg |
| SCMAT-P7-3.5w-1.5h | 3500 | 1500 | 500 x 214 | 80m | Yes | 158kg |
| SCMAT-P7-3.5w-2h | 3500 | 2000 | 500 x 286 | 80m | Yes | 210kg |
| SCMAT-P7-4w-1.5h | 4000 | 1500 | 571 x 214 | 80m | Yes | 180kg |
| SCMAT-P7-4w-2h | 4000 | 2000 | 571 x 286 | 80m | Yes | 240kg |
| SCMAT-P7-4w-2.5h | 4000 | 2500 | 571 x 357 | 100m | 1Yes | 300kg |
| SCMAT-P7-4.5w-2h | 4500 | 2000 | 643 x 286 | 100m | Yes | 270kg |
| SCMAT-P7-4.5w-2.5h | 4500 | 2500 | 643 x 357 | 100m | Yes | 338kg |
| SCMAT-P7-4.5w-3h | 4500 | 3000 | 643 x 429 | 130m | Yes | 405kg |
| SCMAT-P7-5w-2.5h | 5000 | 2500 | 714 x 357 | 130m | Yes | 375kg |
| SCMAT-P7-5w-3h | 5000 | 3000 | 714 x 429 | 130m | Yes | 450kg |
| SCMAT-P7-6w-3h | 6000 | 3000 | 857 x 429 | 150m | Yes | 540kg |
| SCMAT-P7-6w-4h | 6000 | 4000 | 857 x 571 | 150m | Yes | 720kg |
| SCMAT-P7-6w-5h | 6000 | 5000 | 857 x 714 | 150m | Yes | 900kg |
| SCMAT-P7-7w-3h | 7000 | 3000 | 1000 x 429 | 150m | Yes | 630kg |
| SCMAT-P7-7w-4h | 7000 | 4000 | 1000 x 571 | 150m | Yes | 840kg |
| SCMAT-P7-7w-5h | 7000 | 5000 | 1000 x 714 | 150m | Yes | 1050kg |
| SCMAT-P7-8w-4h | 8000 | 4000 | 1143 x 571 | 180m | Yes | 960kg |
| SCMAT-P7-8w-5h | 8000 | 5000 | 1143 x 714 | 180m | Yes | 1200kg |
| SCMAT-P7-8w-6h | 8000 | 6000 | 1143 x 857 | 180m | Yes | 1440kg |
| SCMAT-P7-9w-5h | 9000 | 5000 | 1286 x 714 | 180m | Yes | 1350kg |
| SCMAT-P7-9w-6h | 9000 | 6000 | 1286 x 857 | 180m | Yes | 1620kg |
| SCMAT-P7-10w-5h | 10000 | 5000 | 1429 x 714 | 180m | Yes | 1500kg |
| SCMAT-P7-10w-6h | 10000 | 6000 | 1429 x 857 | 180m | Yes | 1800kg |
| SCMAT-P7-10w-7h | 10000 | 7000 | 1429 x 1000 | 180m | Yes | 2100kg |
| SCMAT-P7-11w-5h | 11000 | 5000 | 1571 x 714 | 180m | Yes | 1650kg |
| SCMAT-P7-11w-6h | 11000 | 6000 | 1571 x 857 | 200m | Yes | 1980kg |
| SCMAT-P7-11w-7h | 11000 | 7000 | 1571 x 1000 | 200m | Yes | 2310kg |
| SCMAT-P7-11w-8h | 11000 | 8000 | 1571 x 1143 | 200m | Yes | 2640kg |
- Multi-sport software.
- Support structure.
- Installation.
- External 12v siren.
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
Model: SCMAT-P4
Tennis LED Screen Scoreboard.
- Southern Cross Tennis scoring software.
- Multi-functional use software for scoring, information display, advertising, and entertainment.
- LED screen control computing system.
- Premium multi colour SMD LED technology.
- Brightness to 900nits.
- Full sunlight visibility.
- Weatherproof durable powder coated aluminium enclosure.
- IP-65 protective waterproof mask coated on front LED’s.
- Optional inclusion 12v external siren.
| MODEL | Width (mm) | Height (mm) | Resolution (px) | Max Viewing | Live video capable | Approx Weight |
| SCMAT-P4-xw-1h | x | 1000 | X x 250 | 40m | No | NA |
| SCMAT-P4-2w-1h | 2000 | 1000 | 500 x 250 | 40m | No | 60kg |
| SCMAT-P4-2w-1.5h | 2000 | 1500 | 500 x 375 | 70m | No | 90kg |
| SCMAT-P4-3w-1h | 3000 | 1000 | 750 x 250 | 70m | No | 90kg |
| SCMAT-P4-3w-1.5h | 3000 | 1500 | 750 x 375 | 80m | Yes | 135kg |
| SCMAT-P4-3w-2h | 3000 | 2000 | 750 x 500 | 80m | Yes | 180kg |
| SCMAT-P4-3.5w-1.5h | 3500 | 1500 | 875 x 375 | 80m | Yes | 158kg |
| SCMAT-P4-3.5w-2h | 3500 | 2000 | 875 x 500 | 80m | Yes | 210kg |
| SCMAT-P4-4w-1.5h | 4000 | 1500 | 1000 x 375 | 80m | Yes | 180kg |
| SCMAT-P4-4w-2h | 4000 | 2000 | 1000 x 500 | 80m | Yes | 240kg |
| SCMAT-P4-4w-2.5h | 4000 | 2500 | 1000 x 625 | 100m | Yes | 300kg |
| SCMAT-P4-4.5w-2h | 4500 | 2000 | 1125 x 500 | 100m | Yes | 270kg |
| SCMAT-P4-4.5w-2.5h | 4500 | 2500 | 1125 x 625 | 100m | Yes | 338kg |
| SCMAT-P4-4.5w-3h | 4500 | 3000 | 1125 x 750 | 130m | Yes | 405kg |
| SCMAT-P4-5w-2.5h | 5000 | 2500 | 1250 x 625 | 130m | Yes | 375kg |
| SCMAT-P4-5w-3h | 5000 | 3000 | 1250 x 750 | 130m | Yes | 450kg |
| SCMAT-P4-6w-3h | 6000 | 3000 | 1500 x 750 | 150m | Yes | 540kg |
| SCMAT-P4-6w-4h | 6000 | 4000 | 1500 x 1000 | 150m | Yes | 720kg |
| SCMAT-P4-6w-5h | 6000 | 5000 | 1500 x 1250 | 150m | Yes | 900kg |
| SCMAT-P4-7w-3h | 7000 | 3000 | 1750 x 750 | 150m | Yes | 630kg |
| SCMAT-P4-7w-4h | 7000 | 4000 | 1750 x 1000 | 150m | Yes | 840kg |
| SCMAT-P4-7w-5h | 7000 | 5000 | 1750 x 1250 | 150m | Yes | 1050kg |
| SCMAT-P4-8w-4h | 8000 | 4000 | 2000 x 1000 | 180m | Yes | 960kg |
| SCMAT-P4-8w-5h | 8000 | 5000 | 2000 x 1250 | 180m | Yes | 1200kg |
| SCMAT-P4-8w-6h | 8000 | 6000 | 2000 x 1500 | 180m | 1Yes | 1440kg |
| SCMAT-P4-9w-5h | 9000 | 5000 | 2250 x 1250 | 180m | Yes | 1350kg |
| SCMAT-P4-9w-6h | 9000 | 6000 | 2250 x 1500 | 180m | Yes | 1620kg |
| SCMAT-P4-10w-5h | 10000 | 5000 | 2500 x 1250 | 180m | Yes | 1500kg |
| SCMAT-P4-10w-6h | 10000 | 6000 | 2500 x 1500 | 180m | Yes | 1800kg |
| SCMAT-P4-10w-7h | 10000 | 7000 | 2500 x 1750 | 180m | Yes | 2100kg |
| SCMAT-P4-11w-5h | 11000 | 5000 | 2750 x 1250 | 180m | Yes | 1650kg |
| SCMAT-P4-11w-6h | 11000 | 6000 | 2750 x 1500 | 200m | Yes | 1980kg |
| SCMAT-P4-11w-7h | 11000 | 7000 | 2750 x 1750 | 200m | Yes | 2310kg |
| SCMAT-P4-11w-8h | 11000 | 8000 | 2750 x 2000 | 200m | Yes | 2640kg |
- Multi-sport software.
- Support structure.
- Installation.
- 12v External Siren
- Add an additional character board to your scoring or entertainment system.
- Multiple screen solutions.
- Customised layout and orientation of scoreboard.
All our LED screens are programmable to be multi-functional displays. LED screens can be used for various activities including:
- Sport Scoreboards.
- AFL
- Football
- Hockey
- Basketball
- Cricket
- Netball
- Rugby Union
- Rugby League
- Volleyball
- Waterpolo
- Aquatic
- Athletics
- Baseball
- Tennis
- Indoor Sports
- Information Display.
- Entertainment Display.
- Advertising Display.
- Sponsorship Display.
